Black Wire Cloth Disc 0.12mm To 0.60mm Wire 10 To 60mesh With Features With Uniform Holes
Black Wire Cloth Disc Introduction:

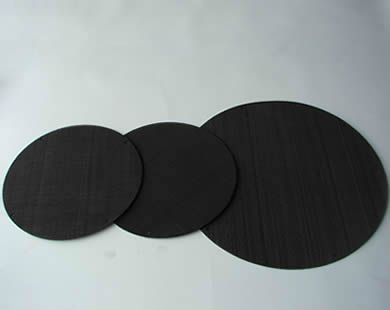

Black wire cloth filter disc, also named iron wire mesh filter disc or black wire mesh filter disc, is one type of the metal filter discs. Black wire cloth filter disc is made of low carbon steel and its weaving type includes plain weave, twill weave and dutch weave. With superior quality, black wire mesh filter discs are widely used in rubber industry, plastic industry, oil industry, grain industry, etc.
Material: Super quality low carbon steel wire.
Patterns: Plain weave, twill weave, plain dutch weave and twill dutch weave while plain weave is the most popular one. Wire cloth plain and twill weave are all in square opening, while Dutch weave in rectangular opening.
General sizes: Normally we provide plain steel wire cloth from 10mesh to 80mesh in square opening, in rolls 30m long and in width of 36",48",0.6m, 1m, 1.2m. Other sizes also available at customers specific requirements.
Specification
Filter material: low carbon steel.
Wire diameters: 0.12 - 0.60 mm.
Discs diameters: 10 mm - 580 mm.

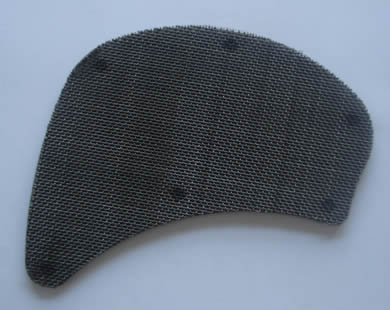

Disc shapes: round, ring, rectangular, oval, crescent, semicircle, etc.
Weaving types: plain weave, twill weave, dutch weave, etc.
Filter disc layer: single layer or multiple layers.
Marginal materials: copper, aluminum, stainless steel, rubber, etc.
Commen Specifications(Sheet 1)
| Black Wire Cloth |
| Mesh | Wire Diameter (bwg) | Specification | Weight (kg) |
| 18x18 | 0.45mm | 3'x100' | 50.8 |
| 20x20 | 0.35mm | 3'x100' | 34.1 |
| 22x22 | 0.30mm | 3'x100' | 27 |
| 24x24 | 0.33mm | 3'x100' | 36.4 |
| 26x26 | 0.33mm | 3'x100' | 39.4 |
| 28x28 | 0.30mm | 3'x100' | 35.1 |
| 30x30 | 0.30mm | 3'x100' | 37.6 |
| 32x32 | 0.20mm | 3'x100' | 17.8 |
| 34x34 | 0.22mm | 3'x100' | 22.9 |
| 36x36 | 0.22mm | 3'x100' | 24.2 |
| 38x38 | 0.22mm | 3'x100' | 25.6 |
| 40x40 | 0.20mm | 3'x100' | 22.3 |
| 42x42 | 0.17mm | 3'x100' | 16.9 |
| 44x44 | 0.17mm | 3'x100' | 17.7 |
| 46x46 | 0.17mm | 3'x100' | 18.5 |
| 48x48 | 0.17mm | 3'x100' | 19.3 |
| 50x50 | 0.17mm | 3'x100' | 20.1 |
| 56x56 | 0.17mm | 3'x100' | 22.5 |
| 60x60 | 0.17mm | 3'x100' | 24.2 |
| Roll Width: 0.6-1.5meter |
Commen Specifications(Sheet 2)
| Black Wire Cloth Dutch Weave |
| Mesh | Wire Diameter (mm) |
| 12X64 | 0.58/0.64 |
| 14X88 | 0.50/0.33 |
| 24X110 | 0.36/0.25 |
| 30X150 | 0.23/0.18 |
Features:
Withstand high temperature and harsh conditions.
Uniform mesh holes.
Neat and flat mesh surface.
Long service life.
Applications:
Black wire cloth filter discs, the same as stainless steel filter discs and sintered filter discs, are mainly used in chemical industry, medicine, machinery, metallurgy, plastic industry, rubber industry, industrial filtration, petroleum filtration, grain industry filtration, etc.
.
