304/316 Stainless Woven Mesh 60/80/100/150/200 Plain Woven

Name: 304316 Stainless Woven Mesh 6080100150200 Plain Woven
Brand: QIANPU
Price: 1 USD

Buy cheap 304/316 Stainless Woven Mesh 60/80/100/150/200 Plain Woven product

Brand Name : QIANPU

Certification : ISO

Place of Origin : ANPING OF CHINA

MOQ : 5rolls

Price : negotiable

Payment Terms : T/T, Western Union

Supply Ability : 2000rolls per month

Delivery Time : 8-14 days

Packaging Details : paper core inside, warped with waterproof paper or plastic film, then in wooden cases or pallets

product name : stainless steel wire mesh

Material : ss304 ss316

mesh count : 22

wire diameter : 0.2mm

Color : silver, grey, white

Surface treatment : polished, powder coated

Width : 0.6m, 1m, 1.2m, 2m, 3m, up to 10m

Length : 30m or customized

Features : High density of mesh, anti mosquitoes and other insects.

Application : Mosquito window screen.

Place of Origin Henan, China Delivery Time : 8-14 days

Screen mesh size : 5 mesh to 635 mesh

Contact Now

Mesh/Inch	Wire Diameter		Aperture		Open Area	Weight(LB) /100 Square Foot
Mesh/Inch	Inch	MM	Inch	MM	Open Area	Weight(LB) /100 Square Foot
1x1	0.08	2.03	0.92	23.37	84.6	41.1
2X2	0.063	1.6	0.437	11.1	76.4	51.2
3X3	0.054	1.37	0.279	7.09	70.1	56.7
4X4	0.063	1.6	0.187	4.75	56	104.8
4X4	0.047	1.19	0.203	5.16	65.9	57.6
5X5	0.041	1.04	0.159	4.04	63.2	54.9
6X6	0.035	0.89	0.132	3.35	62.7	48.1
8X8	0.028	0.71	0.097	2.46	60.2	41.1
10X10	0.025	0.64	0.075	1.91	56.3	41.2
10X10	0.02	0.51	0.08	2.03	64	26.1
12X12	0.023	0.584	0.06	1.52	51.8	42.2
12X12	0.02	0.508	0.063	1.6	57.2	31.6
14X14	0.023	0.584	0.048	1.22	45.2	49.8
14X14	0.02	0.508	0.051	1.3	51	37.2
16X16	0.018	0.457	0.0445	1.13	50.7	34.5
18X18	0.017	0.432	0.0386	0.98	48.3	34.8
20X20	0.02	0.508	0.03	0.76	36	55.2
20X20	0.016	0.406	0.034	0.86	46.2	34.4
24X24	0.014	0.356	0.0277	0.7	44.2	31.8
30X30	0.013	0.33	0.0203	0.52	37.1	34.8
30X30	0.012	0.305	0.0213	0.54	40.8	29.4
30X30	0.009	0.229	0.0243	0.62	53.1	16.1
35X35	0.011	0.279	0.0176	0.45	37.9	29
40X40	0.01	0.254	0.015	0.38	36	27.6
50X50	0.009	0.229	0.011	0.28	30.3	28.4
50X50	0.008	0.203	0.012	0.31	36	22.1
60X60	0.0075	0.191	0.0092	0.23	30.5	23.7
60X60	0.007	0.178	0.0097	0.25	33.9	20.4
70X70	0.0065	0.165	0.0078	0.2	29.8	20.8
80X80	0.0065	0.165	0.006	0.15	23	23.2
80X80	0.0055	0.14	0.007	0.18	31.4	16.9
90X90	0.005	0.127	0.0061	0.16	30.1	15.8
100X100	0.0045	0.114	0.0055	0.14	30.3	14.2
100X100	0.004	0.102	0.006	0.15	36	11
100X100	0.0035	0.089	0.0065	0.17	42.3	8.3
110X110	0.004	0.1016	0.0051	0.1295	30.7	12.4
120X120	0.0037	0.094	0.0064	0.1168	30.7	11.6
150X150	0.0026	0.066	0.0041	0.1041	37.4	7.1
160X160	0.0025	0.0635	0.0038	0.0965	36.4	5.94
180X180	0.0023	0.0584	0.0033	0.0838	34.7	6.7
200X200	0.0021	0.0533	0.0029	0.0737	33.6	6.2
250X250	0.0016	0.0406	0.0024	0.061	36	4.4
270X270	0.0016	0.0406	0.0021	0.0533	32.2	4.7
300X300	0.0051	0.0381	0.0018	0.0457	29.7	3.04
325X325	0.0014	0.0356	0.0017	0.0432	30	4.4
400X400	0.001	0.0254	0.0015	0.37	36	3.3
500X500	0.001	0.0254	0.001	0.0254	25	3.8
635X635	0.0008	0.0203	0.0008	0.0203	25	2.63

22 Mesh 0.2 Mm Wire Stainless Steel 304 Wire Mesh Invisible Window Screen

Introduction:

We have 50 weaving looms of stainless steel wire mesh and manufacture various stainless steel wire mesh for different industries, most of our stainless steel wire mesh were exported to Europe and America. The stainless steel we use for wire mesh are SS 304, 304L,304H, 316, 316L, 310, 310S, 321, 430; Duplex Stainless Steel 2101, 2205, 2507 etc. Weaving types include Plain Weave, Twill Weave, Plain Dutch Weave, Twill Dutch Weave, Twill Reverse Dutch weave, Crimped etc.

Stainless steel 304 invisible insect screen with the features of high density mesh, high transparency, high strength, corrosion and rust resistance, and clear sight from indoor to outdoor, is widely used as window fly screens, door screens or garage security screens to decorate, prevent mosquito and any other pests. And it adopts the refraction principle of light to make the sight from outdoor to indoor blurred.

Specifications:

Material: 304 stainless steel.
Surface treatment: black powder coated.
Color: only black.
Wire diameter: 0.2 mm.
Mesh size: 22 mesh.
Guarantee: 10 years stainless.

Features:

High density of mesh, anti mosquitoes and other insects.
Ventilation rate, light-taking performance, and transparency achieve 85%–90%.
High strength, toughness and heat-resisting.
Corrosion, rust resistant.
Anti wet or sun exposure environment.
Cut not take off the line.
Easy to clean.
Durable and long service life.
Applications of stainless steel 304 invisible screen

Applications:

Mosquito window screen.
Pest door screen.
Garage security door screen.

304/316 Stainless Woven Mesh 60/80/100/150/200 Plain Woven

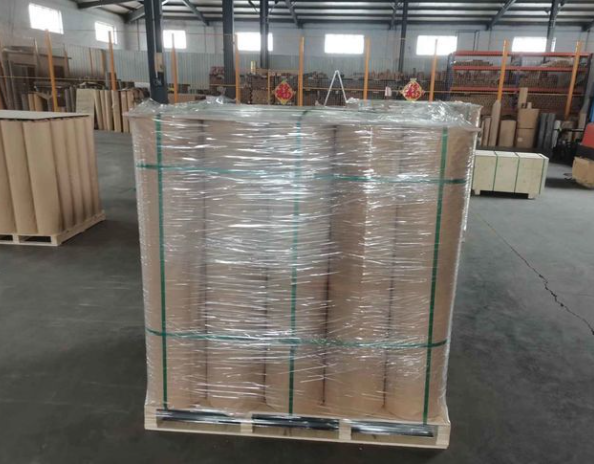

Packing:

304/316 Stainless Woven Mesh 60/80/100/150/200 Plain Woven
